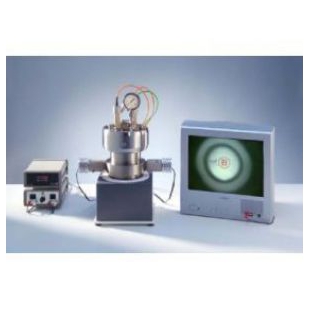

ChemTron Camera 照相反应釜

微信扫码

温度

300℃ max. (230℃ with FPM)

压力

25bar max.

釜体

Made of SS 316 TI

釜盖

Made of SS 316 TI

阀门与配件

密封圈

FPM (Viton)

带照相功能设计的反应釜套装

Reaction vessel set with double wall   circulation jacket for vessel heating with circulation heaters, reactor  lid,  quicklock chain made of SS-316TI, O-seal ring made of  Viton,standard fittings  made of SS-316TI (consist of one regulating valves  and rupture disc for overpressure  protection) and one gas valve made of  SS-316TI

NR1500XX1

RV 100 磁耦轴承

Magnetic clutch RV 100 made of SS-316TI   with Reed contact,torque 100 Ncm, 300℃ , max. viscosity   4000mPa·s at max.10000ml. EX-proof Zone 1

5727090

锚式搅拌浆

NR-1500 Anchor stirrer made of SS-316TI

NR1500XX2

气体阀门

gas valve made of SS-316TI

NR1500XX3

釜盖照相单元安装口

Port connection on Reactor Lid for Camera   Window made of SS-316TI, with Illumination system and camera window

NR1500XX4

照相单元

Camera System with adapter optics   according ExdIIBT4 or better for Zone 1

NR1500XX5

防爆压力测

量单元

Explosion proof Pressure gauge with   pressure transducer made of SS-316 L/S31603, 25bar, 8mm tube connection  according  ExdIIBT4 or better for Zone 0

NR1500XX6

防爆Pt-100传感器

Explosion proof PT-100 resistance   thermometer 250mm×1.5 mm according   ExdIIBT4 or better for Zone 1

NR1500XX7

防爆搅拌马达

EX-proof stirrer drive made of stainless   steel, fine control valve for speed regulation, operation pressure max.  6bar,  air consumption 260l/min (at 6bar), torque 200Ncm according  ExdIIBT4 or  better for Zone 1 (Compressed air is required to operate  the stirrer drive)

5780950

PTFE 高压泄压管

PTFE High pressure tubing (2.5m; ID 9mm;   550bar) Exhaust tubing for rupture discs, G3/8" female (inlet)   -G3/8" male (outlet)

5701017

PTFE高压

进气管

Stainless steel braided PTFE High   pressure tubing (2m; I) 9mm; working pressure 200bar at 20 ℃ ) Gas feeding tube,8mm tube connections

5701077

消耗品

O- 型圈

O-ring 115×3.5 mm made of   Viton for reactors without PTFE-lining

5757903

O- 型圈

O-ring 115×3.5 mm made of   FFKM (Perlast) for reactors without PTFE-lining
