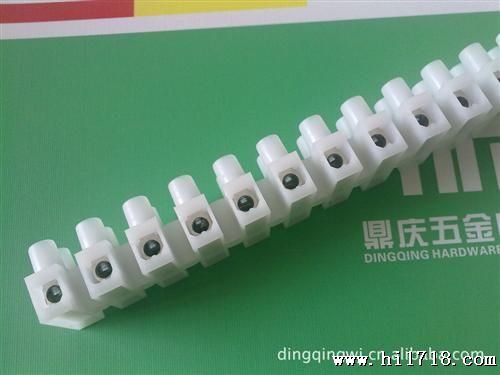

供应PA9纯铜接线端子(PA66端子台)
微信扫码

￥99999.00元/件

联系方式

加关注4

管理员第2年

资料通过认证

保证金未缴纳

企业主推商品

微信扫码

规格尺寸((Dimensions&Data)

型号 Model 订单编号Cat. 线径 m㎡安培 Amp 电压 Volt 螺丝 Screw 尺寸Dimensions(㎜/in.) 包装 Packing

Unit A B C D E F

PA7 PA7F 1.5 17.5A 450V M2.6X5 (㎜) 96.20 17.00 13.30 8.00 2.90 2.80 50Pcs/Bag.10Bags/Carton

PA8 PA8F (in) 3.772 0.642 0.524 0.315 0.114 0.110

PA7DS PA7FDS 1.5 17.5A 450V M2.6X5 (㎜) 96.20 17.00 13.30 8.00 2.90 2.80 50Pcs/Bag.10Bags/Carton

PA8DS PA8FDS (in) 3.772 0.642 0.524 0.315 0.114 0.110

PA9 PA9F 2.5 24.0A 450V M3.0X6 (㎜) 117.5 20.20 15.80 10.00 3.60 3.20 50Pcs/Bag.10Bags/Carton

PA10 PA10F (in) 4.626 0.795 0.622 0.394 0.142 0.126

PA9DS PA9FDS 2.5 24.0A 450V M3.0X6 (㎜) 117.5 20.20 15.80 10.00 3.60 3.20 50Pcs/Bag.10Bags/Carton

PA10DS PA10FDS (in) 4.626 0.795 0.622 0.394 0.142 0.126

内容(Description):

★底部(base):平底型(With flat base)

★材质(Housing material):尼龙66工程塑胶,火等级UL 94V-2,94V-0(Nylon,Natural)

★温度(Working temperature):110℃

★弹片(Wire protector DS):PA7FDS,PA9FDS附加弹片,(PA7FDS&PA9FDS with Wire protector

★接线排数(poles availavle):12排(12poles)

国际（International Approvals):

型号Model

德国

美国
